3-PC BUTT WELD BALL VALVE from China manufacturer - Hebei Guanyu Stainless Products Co., Ltd.

Price:	3.65~175.86 USD
Payment Terms:	T/T,L/C,D/P,WU
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: BBW-3F

Production Capacity: 100000

Delivery Date: 14-45 days

Standard or Nonstandard: Standard

Structure: Ball

Temperature of Media: Medium Temperature

Brand Name: GY

Sizes: 1/4"-4"

Working Medium: Water Oil Gas

Butt Weld Standard: ANSI B 16.25/GB1224

Handle: Lever handle or butterfly h...

Means of Transport: Ocean,Land,Air

Packing: Each in bubble bag, then pa...

Power: Manual

Pressure: Medium Pressure

Material: AISI304 316; CF8 CF8M

Media: Oil

Shape: Full Bore

Working Pressure: PN64 1000PSI

Connection: Butt Weld

Option: Locking Device

Certification: ISO9001:2008 CE

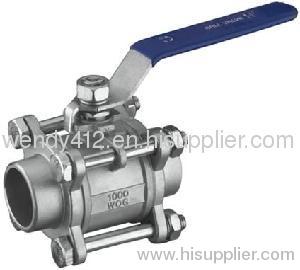

3-PC Stainless Steel Ball Valve with Butt Weld End
1/4 ~ 4 inch, 1000WOG
Material: 304 316; ANSI B 16.25/GB1224
Medium:water,oil,gas
CE,ISO9001

Stainless Steel 3PC Ball Valve with Butt Weld End

Model: BBW-3F Full Bore 1000PSI WOG

CE & ISO9001 Approved

Ball Valve Standard

Design: ANSI B 16.34

Testing: API 598

Connecting: Butt Weld

Socket Weld End: ANSI B 16.25/GB1224

Power: Manual(lever handle or butterfly handle)

Options: Locking device

Body Processing: Investment casting

Application

For general chemical and industrial services

Design for in-line reparable and simple maintenance

Working Pressure: 6.3MPa, 1000PSI, PN64

Temperature: Normal temperature (-26~180 degree)

Applicable Medium: Water, Oil, Gas

Body Material: CF8, CF8M, CF3M

Dimension: 1/4", 3/8", 1/2", 3/4", 1"1 1/2'', 2'', 2 1/2'', 3'', 4''

Features & Benefits

1) Investment casting body

2) Blow-out proof stem and safe prossure-reducing hole

3) Compact assembly

4) Locking device

5) Stainless steel material, highly corrosion resistance

MATERIAL LIST:

ITEM	DESIGNATION	MATERIAL
1	PLASTICCOVER	PLASTIC
2	HANDLE	304
3	GLAND NUT	304
4	STEM NUT	304
5	THRUST WASHER	304
6	STEM PACKING	PTFE
7	STEM SEAL	PTFE
8	BODY SEAL	PTFE
9	CAP	CF8/CF8M
10	BODY	CF8/CF8M
11	SEAL	RPTFE
12	BALL	CF8/CF8M
13	STEM	304/316
